Overview

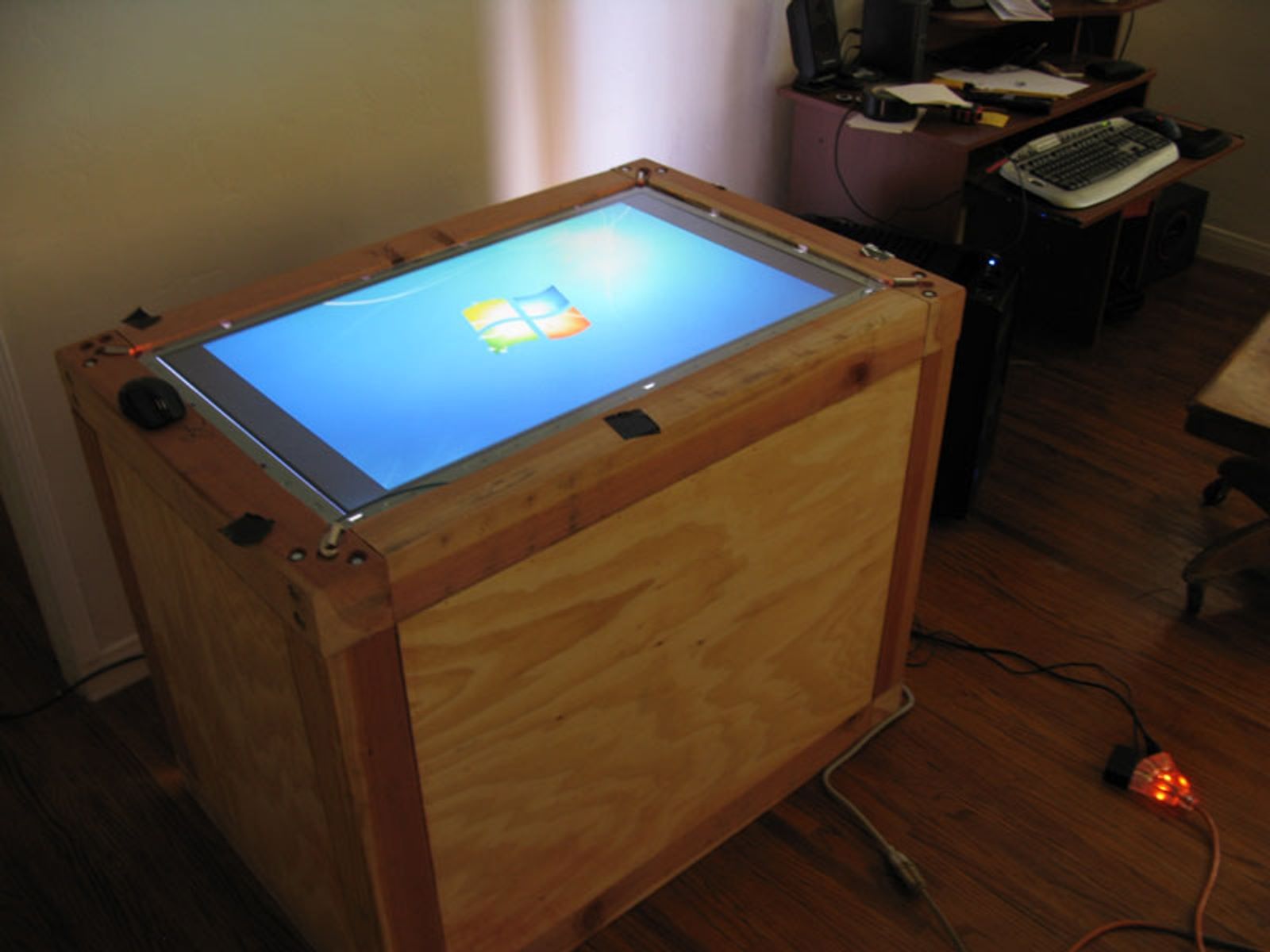

This multi-touch table was built using:
- CCV (Community Core Vision) - Open source computer vision framework for multi-touch sensing
- PlayStation Eye Camera - Modified for infrared tracking
- LLP (Laser Light Plane) - Infrared laser system for touch detection
- LCD Display - Large format display for interactive surface
Construction

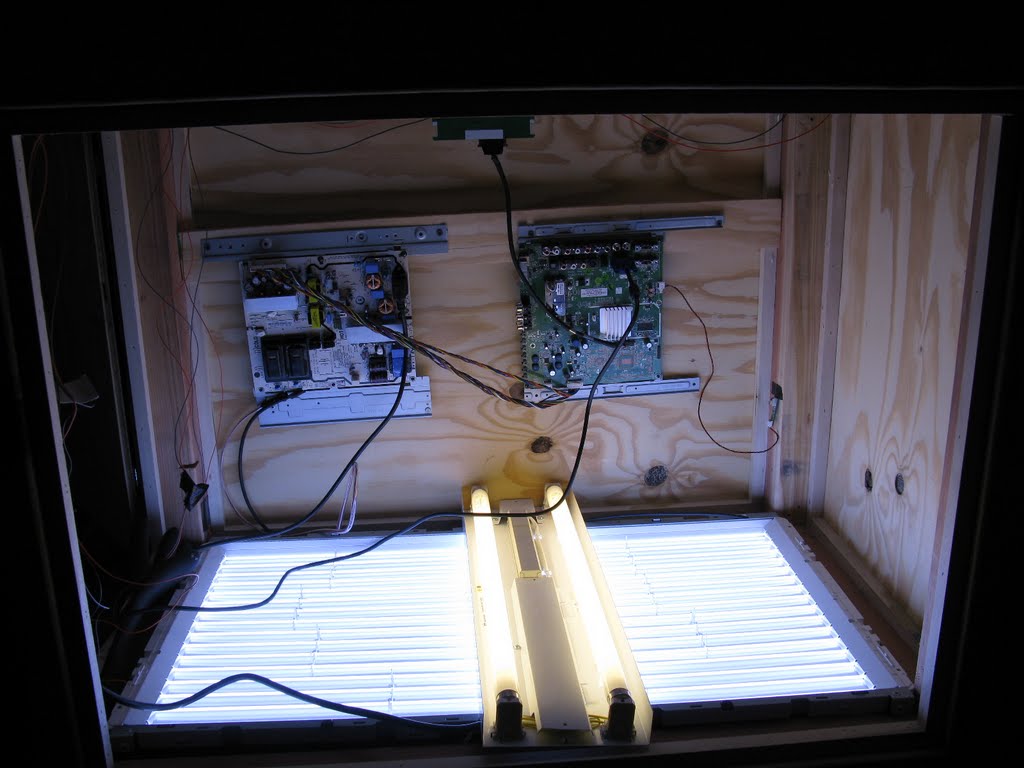

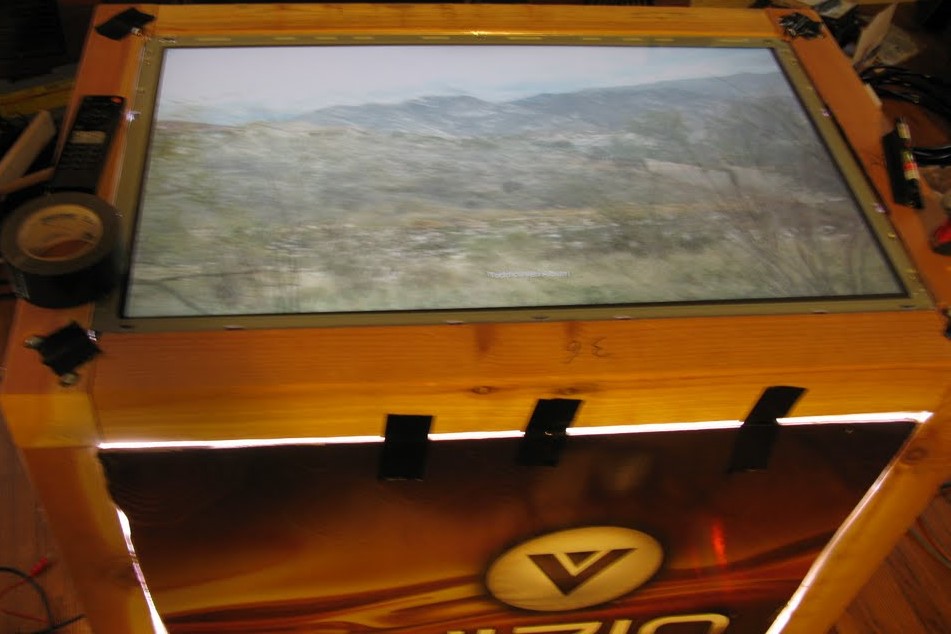

The build process involved creating a custom frame, installing the infrared laser system, and calibrating the computer vision software for accurate touch detection.
Tracking Test
Testing the infrared tracking system and calibrating the multi-touch detection:
Application Test

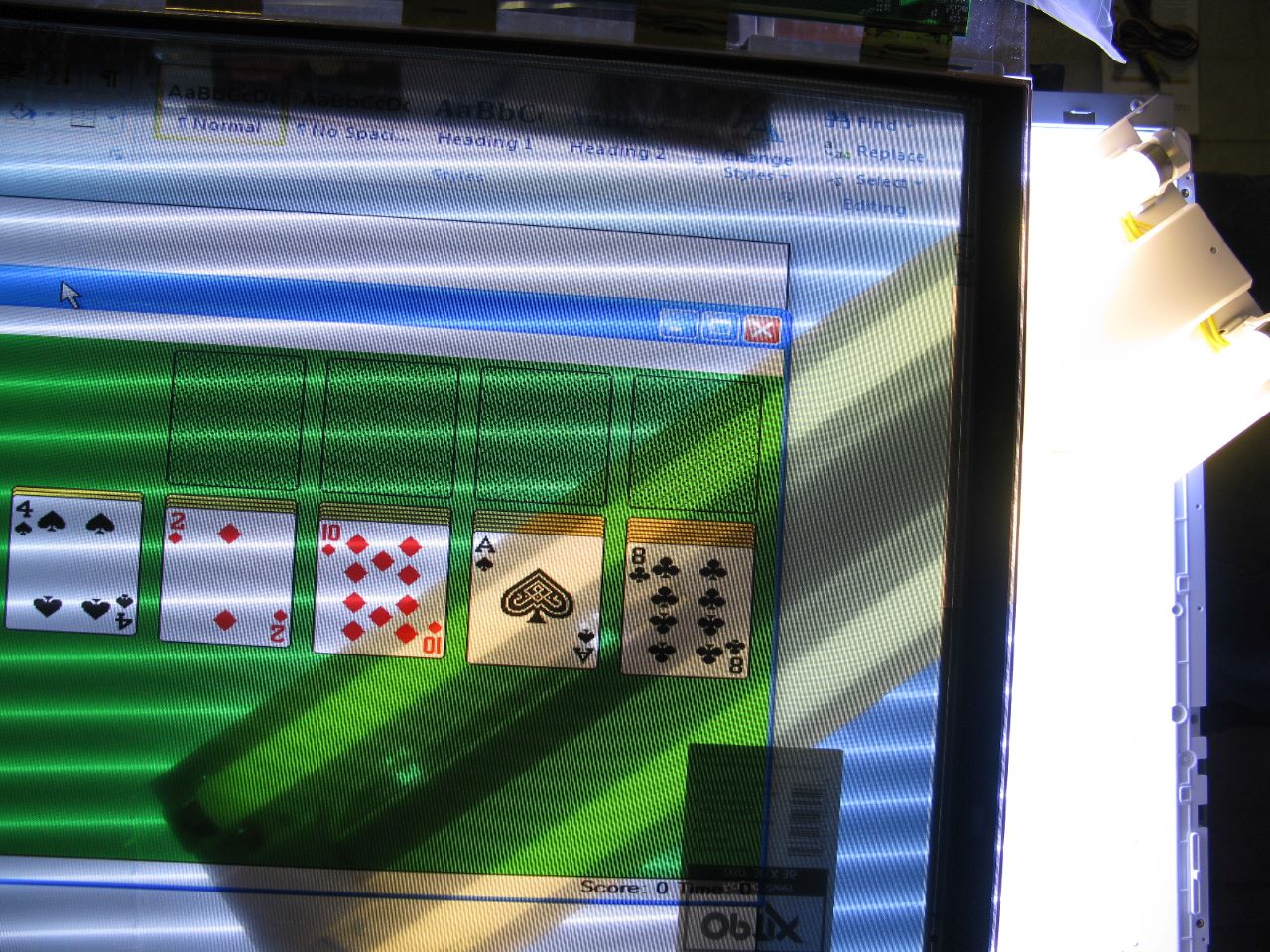

Demonstrating interactive applications running on the multi-touch table:
Technical Specifications
Display
- 42" LCD Panel
- 1920x1080 Resolution
- Rear Projection Compatible
Tracking System
- IR Laser Light Plane
- PlayStation Eye Camera (IR Modified)
- 60 FPS Tracking
Software
- Community Core Vision (CCV)
- TUIO Protocol Support
- OpenCV Integration
